StyroDesign XL-H

StyroDesign XL-H for tongue & groove or ship lap production

Click here to see the StyroDesign XL-H movie

StyroDesign® Contour Cutter for sheets and shapes
EPS blocks 3.100 x 1.050 x 1.250mm

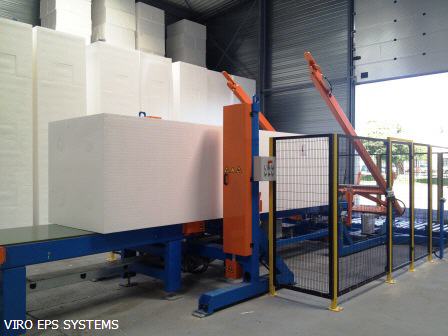

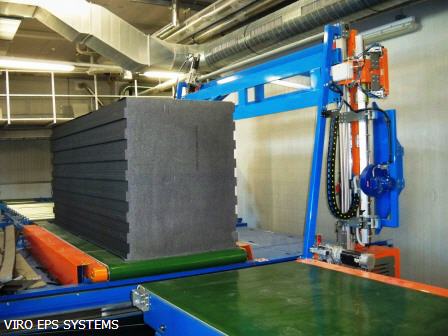

Block Loading Station with Align

STYRODESIGN (Basic)
• 2 belt conveyors for movements
of the material on X-axis

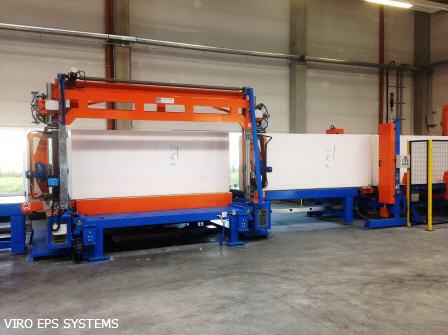

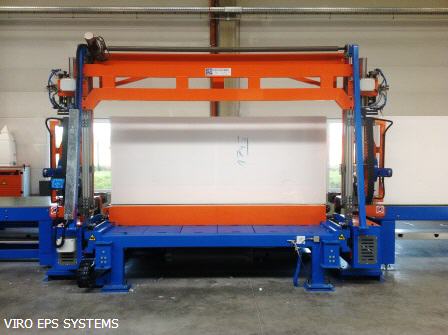

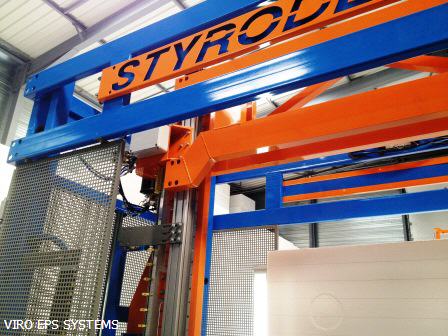

• cutting frame H, fixed
• linear bearings on both sides
for movements of the cutting frame on Y-axis
• 41 wires for contour cutting
• air cooling of exposed wire ends

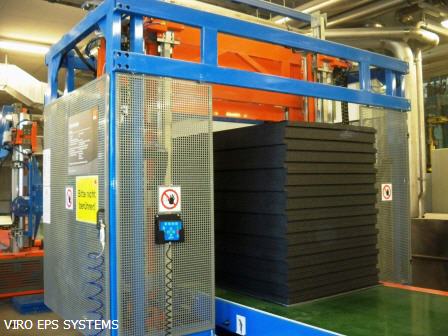

Stationary wire frame HSTAT
• 41 static horizontal leading wires
• automatic temperature control
• cooling of exposed wire ends

AWS HSTAT - auto wire setting of stationary wires

Independant Y-axis motors and control (left/right)
incl. hard- and software for "tapered sheets"

Belt Conveyor

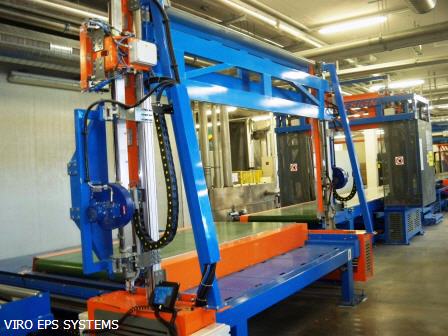

Trimming station V
• two (2) belt conveyors with servo motors
• 21 wires
• cooling of exposed wire ends
• automatic wire positionierung

Bedruckungssystem DAL-I für GFD Plattenbeschriftung

Controlpanel (IP 54), 240/400 V, 50 Hz
WIN PC, MMI, PLC SIEMENS
Settings for process parameters :
• speed according to density of EPS foam
• automatic setting of wire distances (optional)
• cutting speed, Wire temperature
• automatic-, manual- and service mode

Options:

Fast forward belt conveyor
• high speed transport of trimmed sheets into the cross cutting station

Cross cutting station X
• cutting frame 90 degrees to production flow direction
• pusher for material transport through the wires
• 41 wires for length cutting
• cooling of exposed wire ends
• tabel for material discharge

Software - StyroDesign® PRO 8
• Easy design, using the integrated drawing software
• Import of DXF, simple conversion to cutting paths
• Library for common standard parts
• Nesting optimizing the material utilisation
• Best orientation of square pieces in the block
• Automatic correction of burn-off
• Integrated cost calkulation
• Automatic wire positioning

StyroDesign® Roofing software for slope roof, saddles and crickets
• Special VIRO-ROOFER program for easy editing ot tapered roof products
• Data integration to DAL-I marking system for coding of tapered roof boards

Software - StyroDesign® PRO 8
• Easy design, using the integrated drawing software
• Import of DXF, simple conversion to cutting paths
• Library for common standard parts
• Nesting optimizing the material utilisation
• Best orientation of square pieces in the block
• Automatic correction of burn-off
• Integrated cost calkulation
• Automatic wire positioning

StyroDesign® Roofing software for slope roof, saddles and crickets
• Special VIRO-ROOFER program for easy editing ot tapered roof products
• Data integration to DAL-I marking system for coding of tapered roof boards

StyroDesign® Roofing software for slope roof, saddles and crickets
• Special VIRO-ROOFER program for easy editing ot tapered roof products
• Data integration to DAL-I marking system for coding of tapered roof boards
