Bladerunner

Edge cutting system for the production of sheets with rebated edges

Click here to see the video

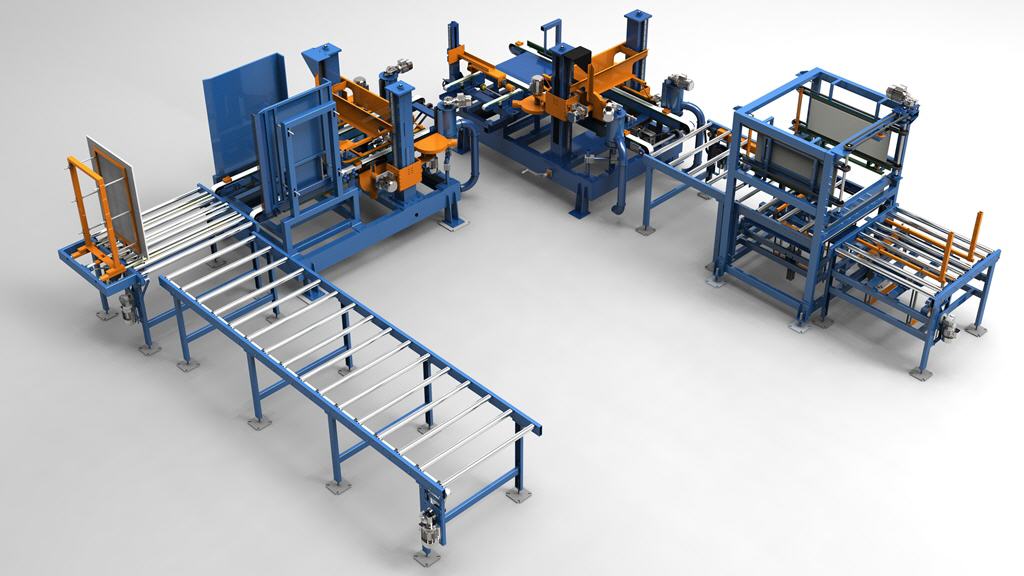

Automatic edge trimming system for cutting shiplap on 4 sides
Permits a smooth, clean, and high precision cut !

The machine can accommodate products with the following dimensions
Width: 500 / 1.000 / 1.200 mm
Length: 1.000 / 1.200 / 2.000 / 2.500 mm
Thickness: 50 - 400 mm
Overlap max. 10 / 15 / 20 mm

Capacity
20 sheets/min. @ 50 – 80 mm thickness
15 sheets/min. @ 100 – 180 mm thickness
8 sheets/min. @ 200 – 300 mm thickness

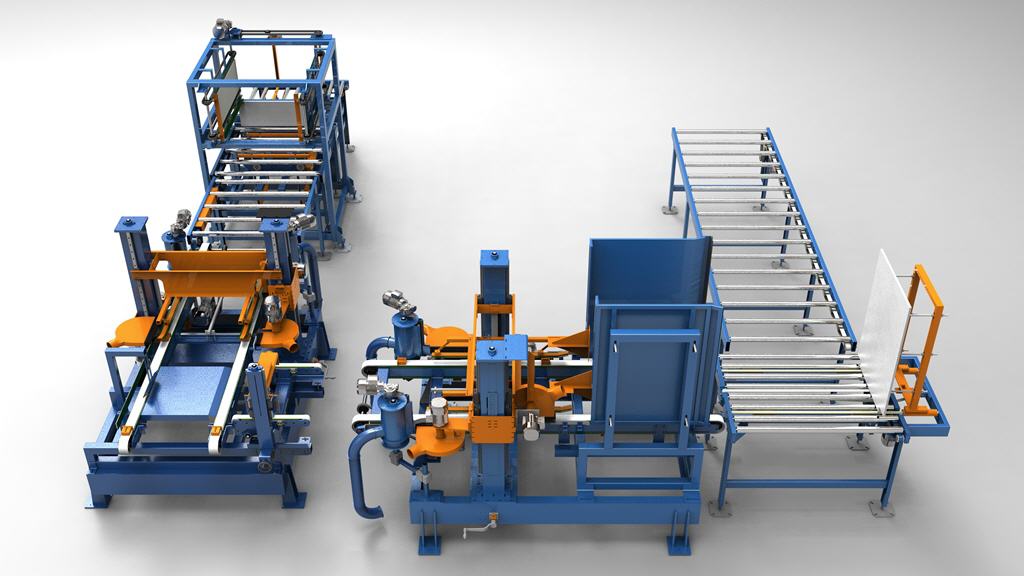

BLADERUNNER - Components

Magazine for EPS sheet stacks
• optional: connection to cutting line for automatic loading
• automatic board feeding system

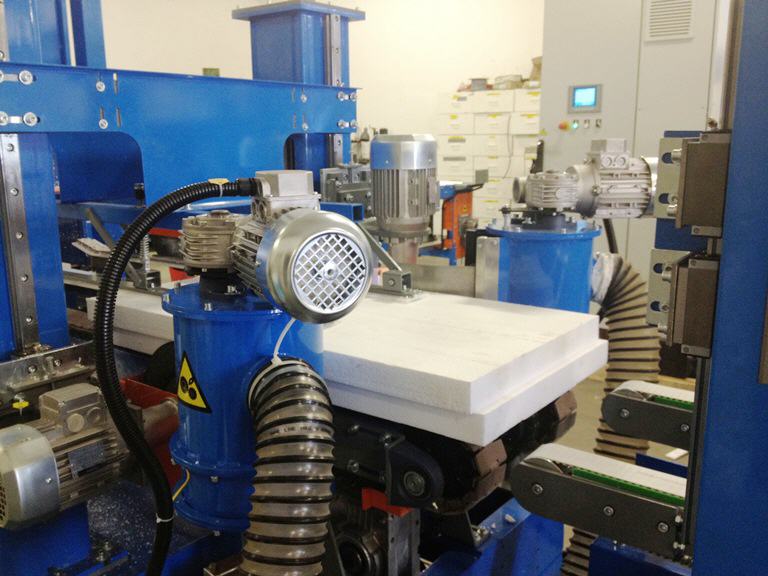

Cutting station - longe sides
• four (4) cutting blades for edge cutting

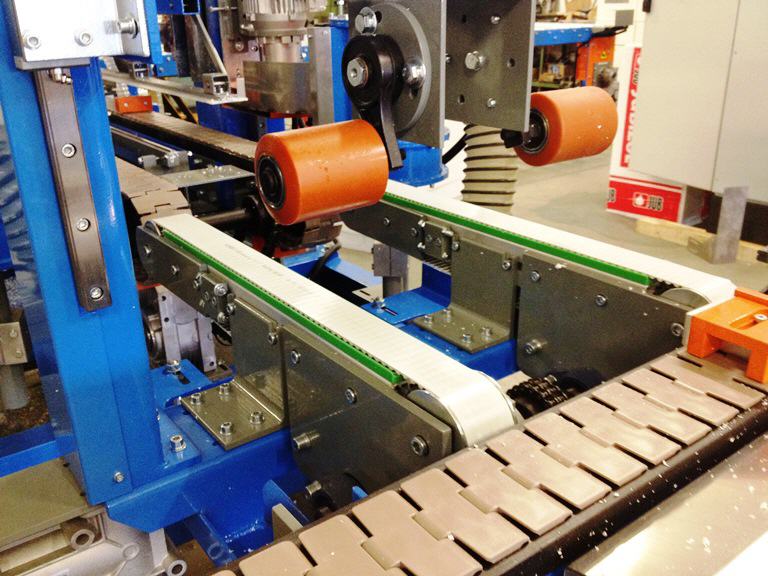

Transfer station
• 90° side transfer into second cutting station

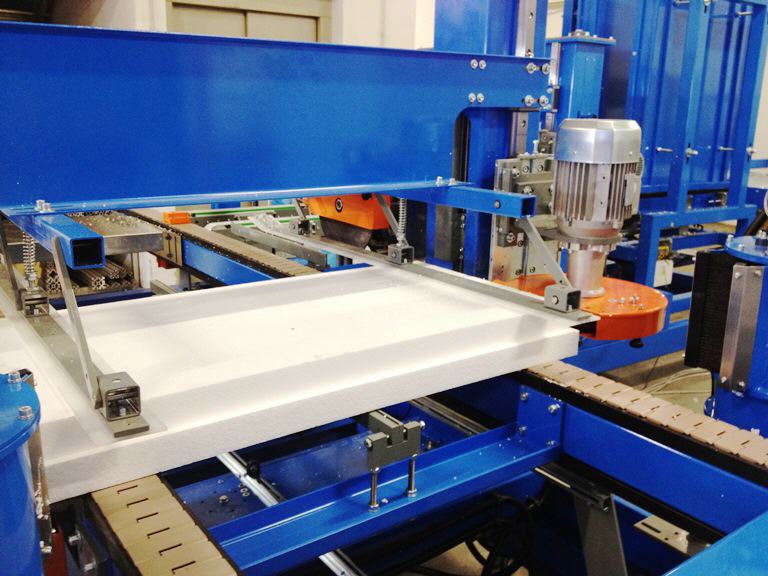

Cutting station - short sides
• four (4) cutting blades for edge cutting

Controlpanel (IP 54), 240/400 V, 50 Hz
WIN PC, MMI, PLC SIEMENS
Settings for process parameters :
• automatic width and height adjustment (optional)
• cutting speed
• automatic-, manual- and service mode

BLADERUNNER - Options

• adjustable sheet dimensions
• surface grooving
• scrap handling system
• automatic stacking of sheets to bundle height
