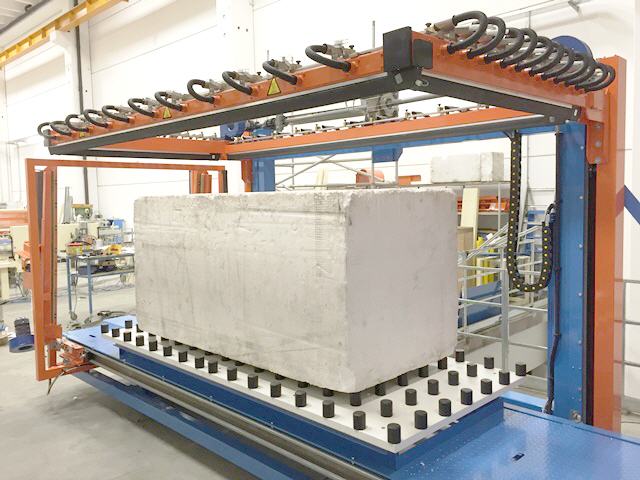

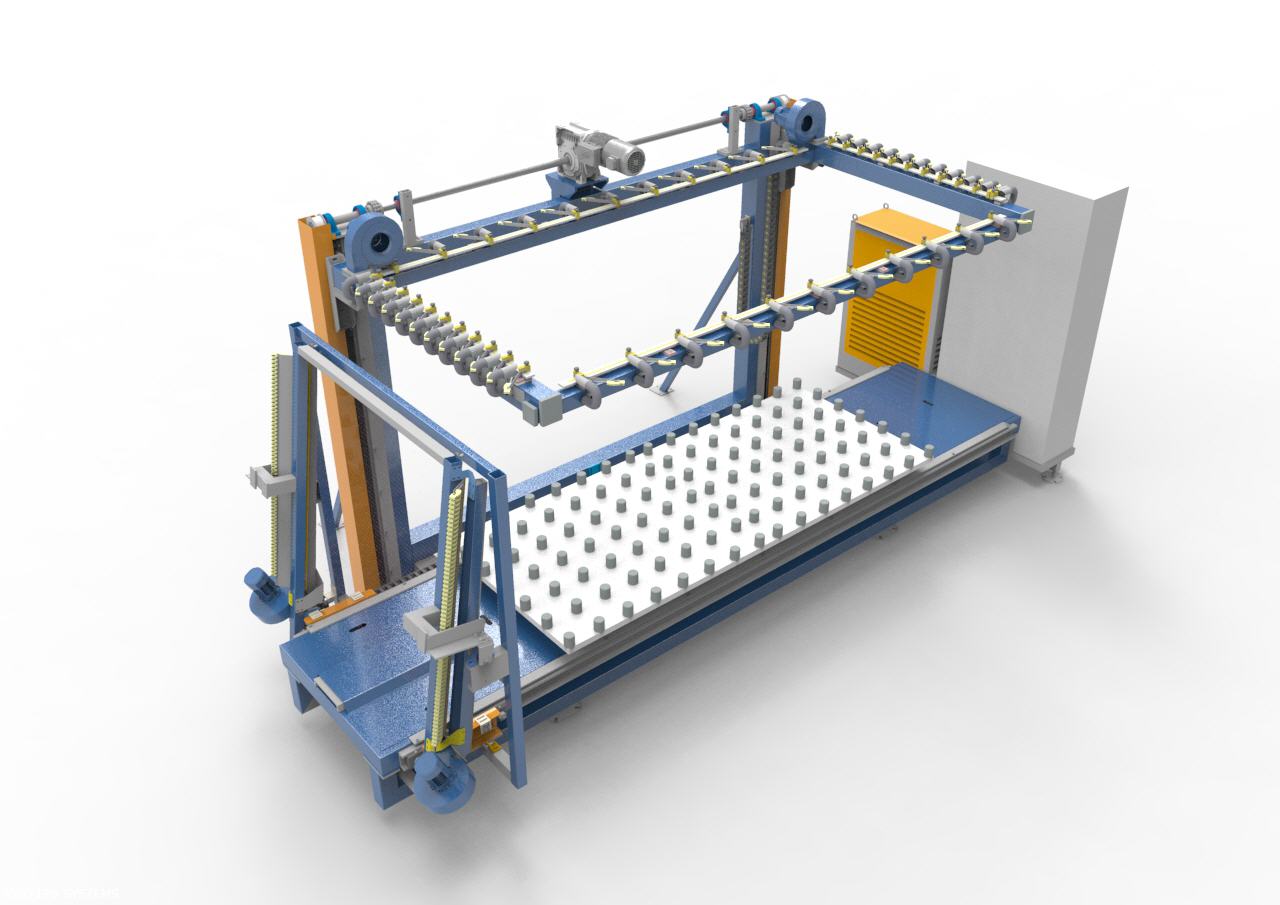

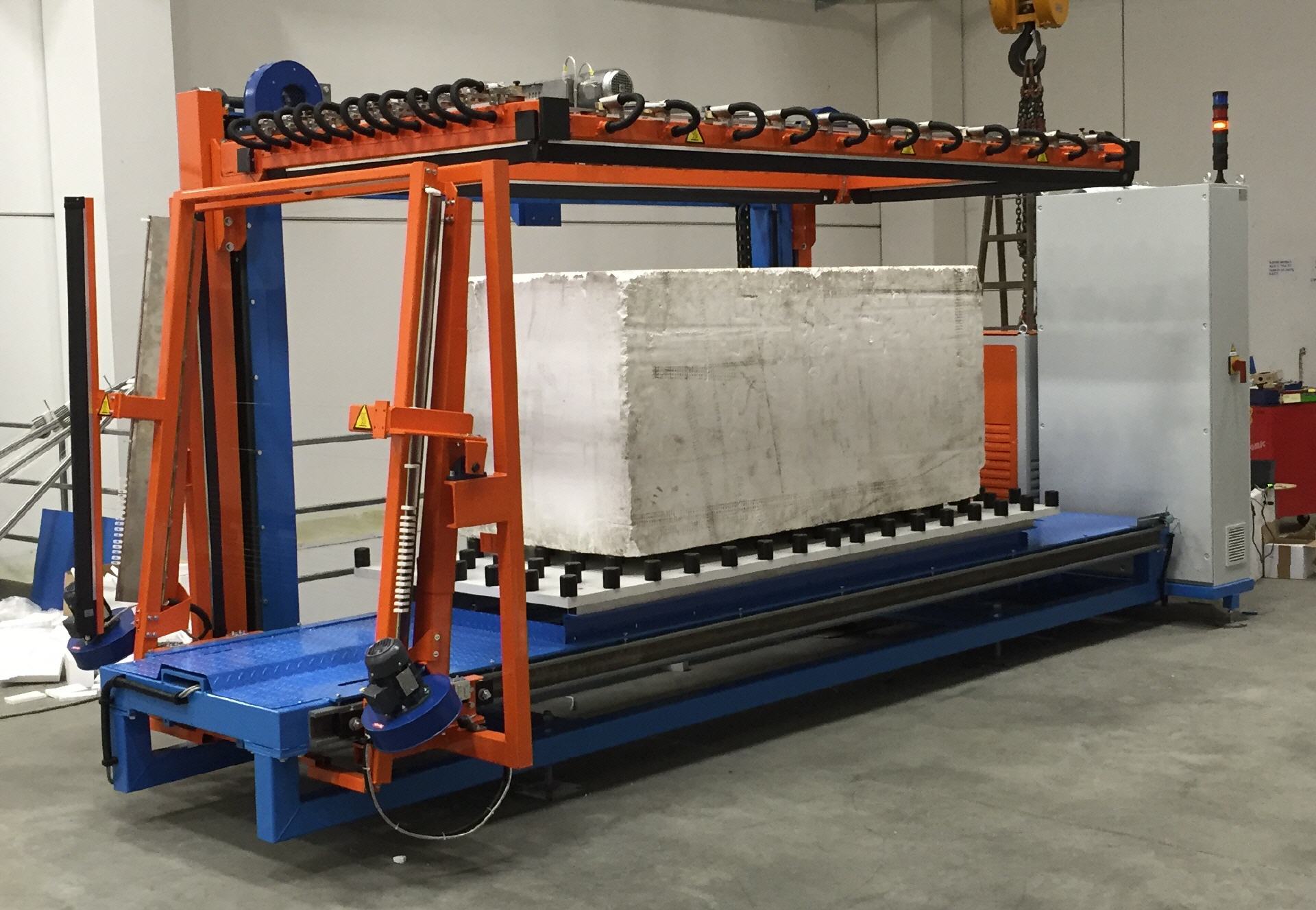

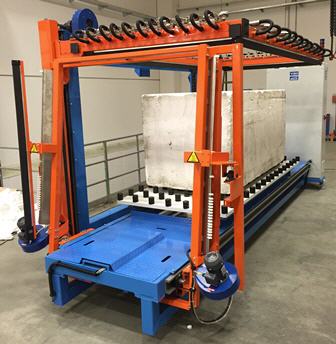

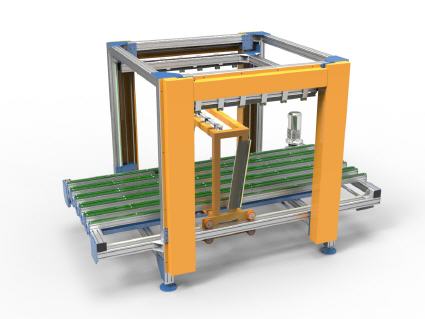

Unicut

compact system for cutting insulation sheets
horizontal slabbing, vertical trimming and cutting to length, all in one machine
available for block lengths of 2.0m, 2.5m, 3.0m

cutting time @ 5-6 minutes for 3.0m blocklength (without loading and unloading)

Operating principle

• load the block and start the cycle
• the horizontal frame with vertical trimming wires travels through the block,
• the downcutting frame cuts to length,
• discharge sheets, send frames to home position
• frame returns to home position
• load new block and start cycle again

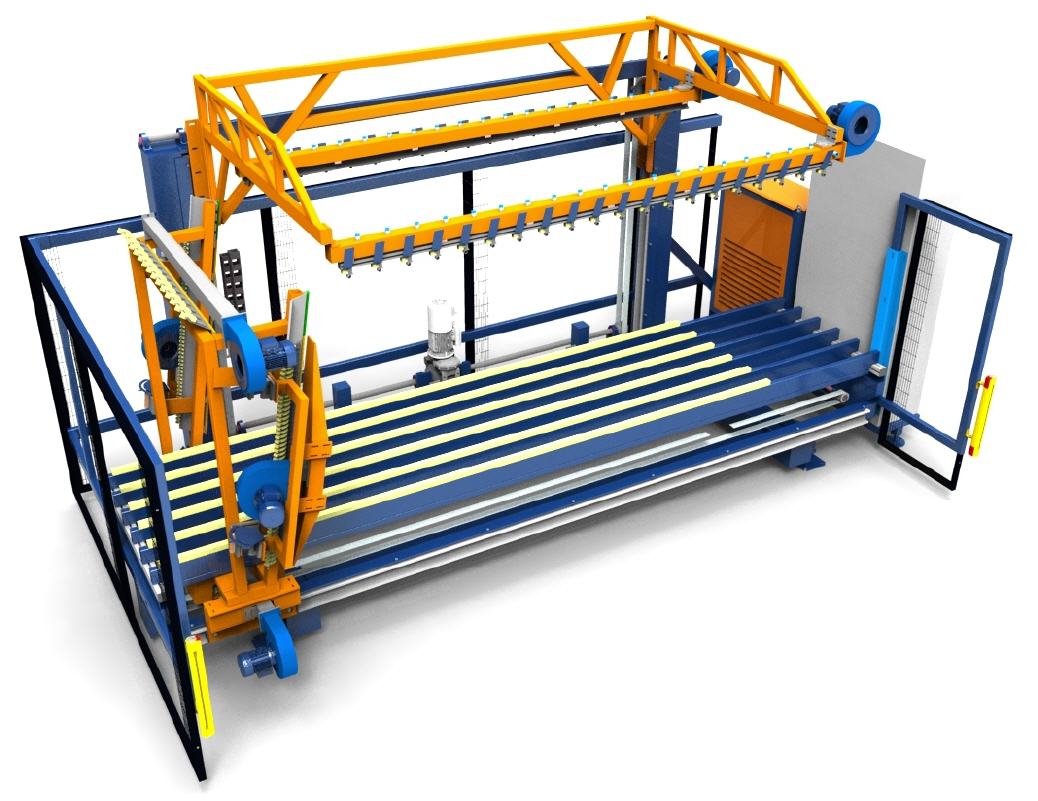

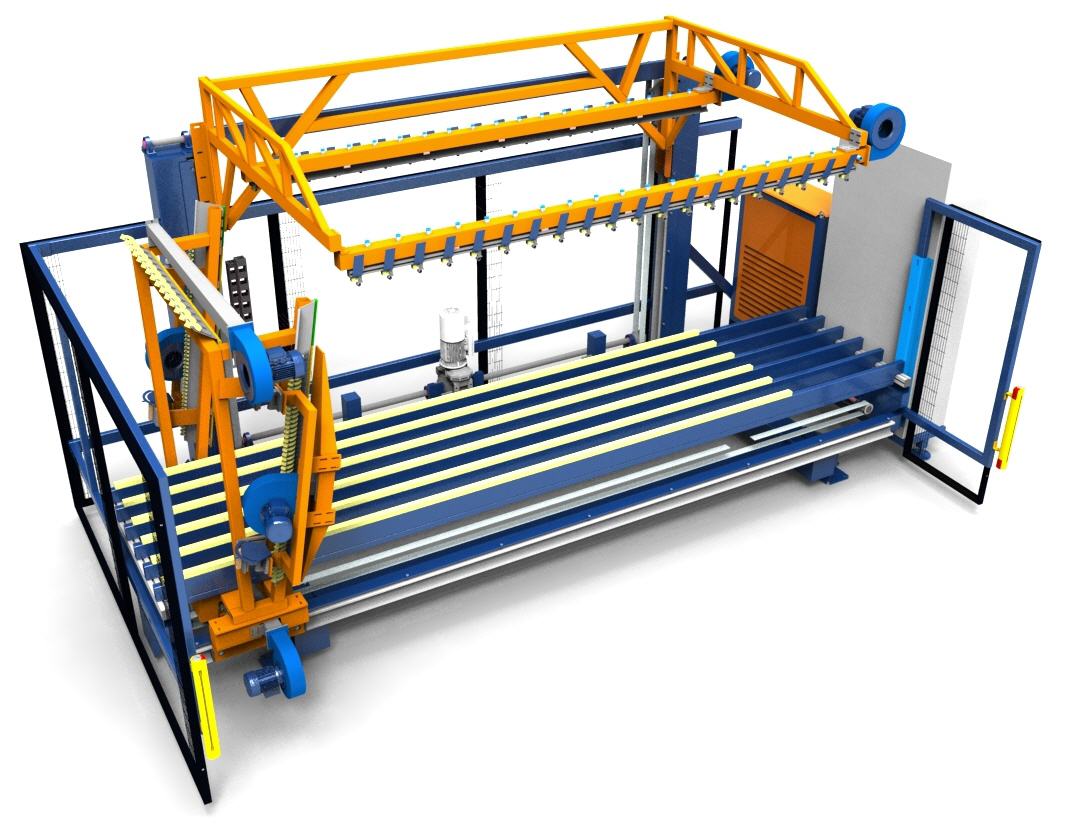

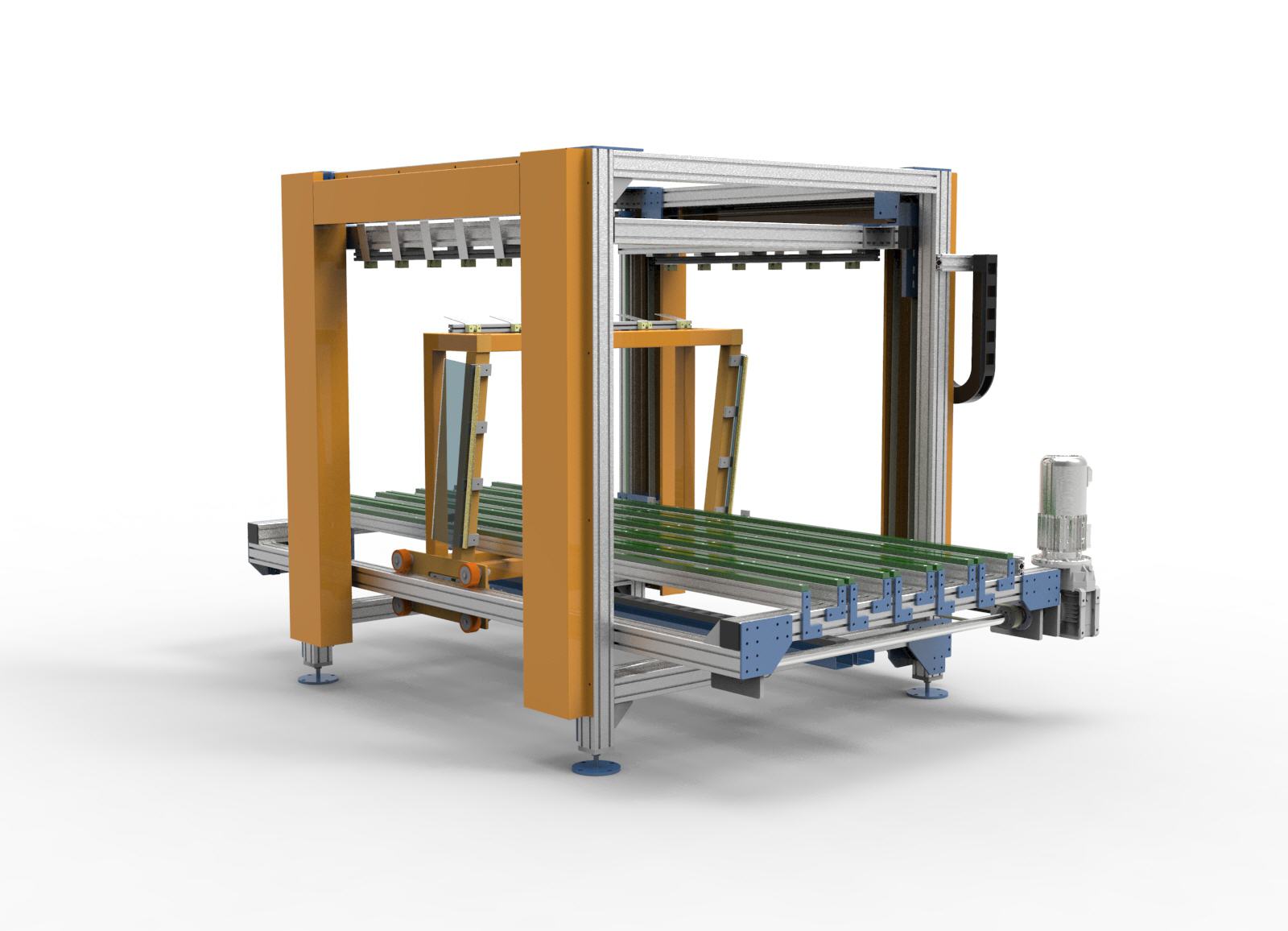

UNICUT - Type 2: downcutter equipped with length cutting and long trimming wires
