Atlantis

Components

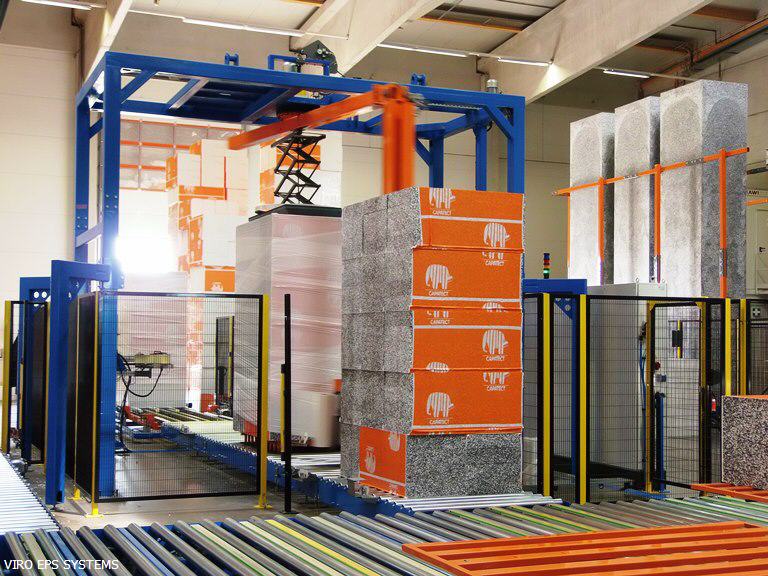

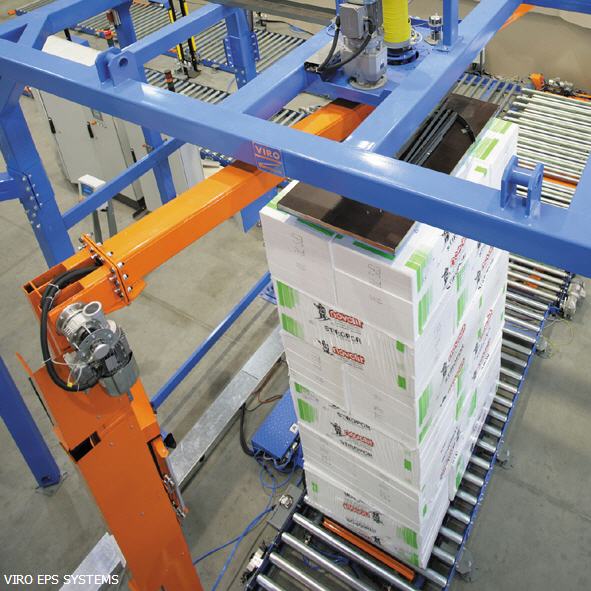

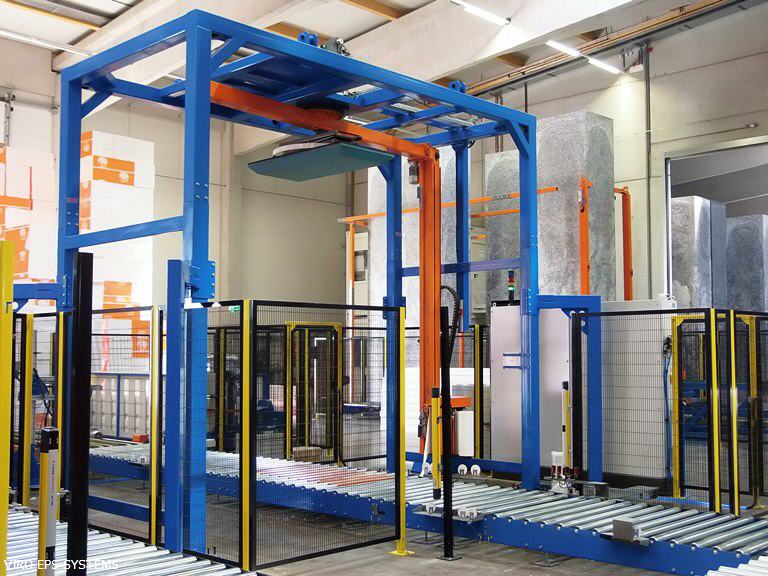

• Rotating arm automatic stretch wrapping machine
• Standard metal grid safety guards all around
• Access door controlled by safety limit switch
• Access sliding door allows easy access
• Gearbox self-breaking motor with gear
• Spool carriage type “FE” with film tension control
• Touch Screen, and pallet height sensing photocell

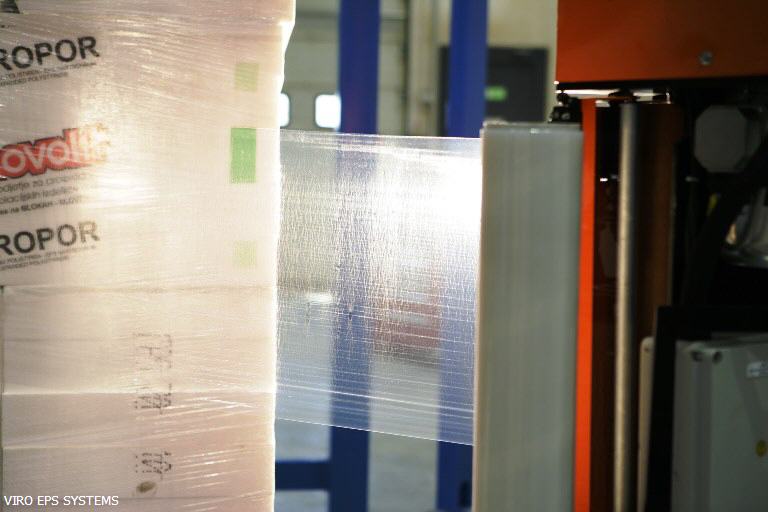

• Automatic film clamping and cutting system

Max. EPS bales dimensions

• Height 2.000 / 2.500 / 3.000 mm
• Length 1.000 / 1.500 / 2.000 / 2.500 mm
• Width 1.000 - 1.300 (optinal 2.500)

Options

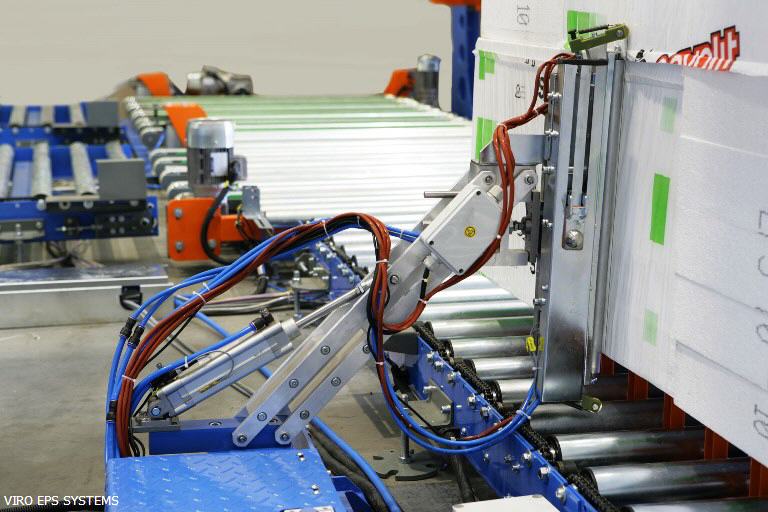

• Bale Lifting Station to secure/wrap bottom pallet edges
• Pallet/Bale Downholder with Szizzor/Pneumatic holding system
• Manual Adjustable Film Pre-Stretch System Type HSW-P to pre-stretch film up to 200 %
• Film End Welding System Type HSW-EW to glue end of film to the wrapped pallet

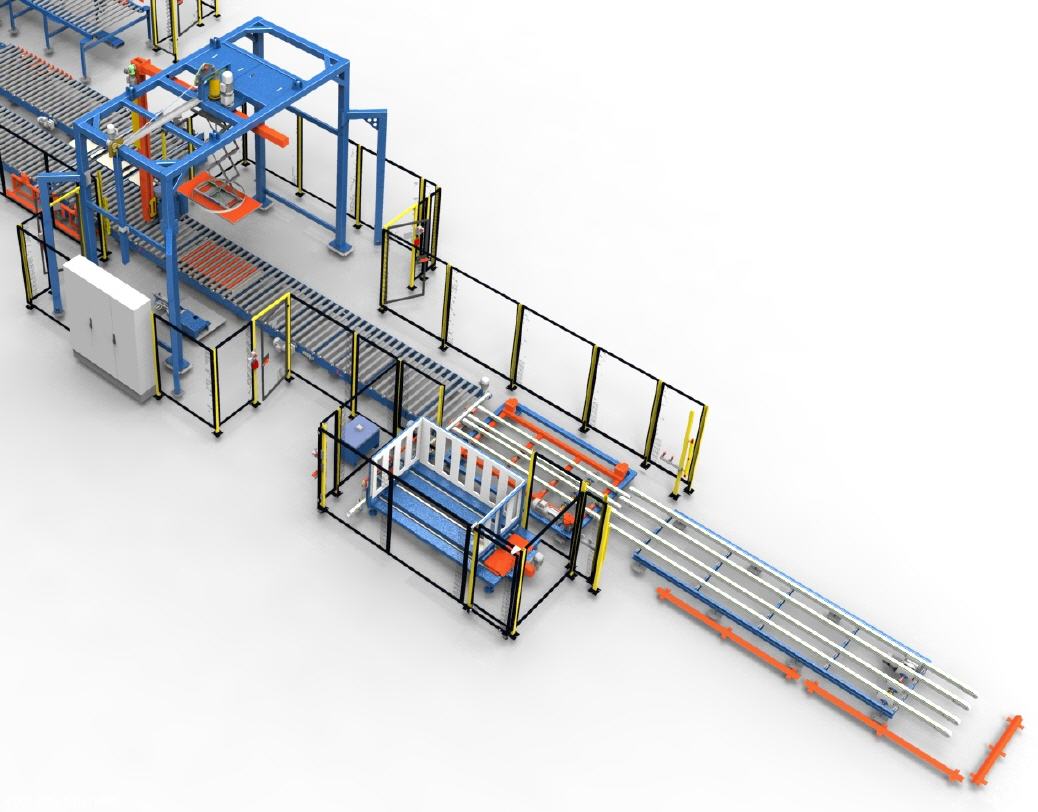

• EPS Skid Feeding and Storage System incl. automatic skid cutting syste
• EPS Bale Positioning and Leg Glueing Station
• EPS Bale Storage Conveyor

Depending on configuration, safety fences and muting systems will be delivered according to final layout.
